| MARKE | OTOTRI |
|---|---|
| INNENDURCHMESSER | 12 MM |
| AUSSENDURCHMESSER | 24 MM |
| DICKE | 13 MM |
| GEWICHT | 27 G |
| VERPACKUNG | 1 |
|
Bezeichnungen:
|
NA4901 NA4902 NA4903 NA4904 NA4905 NA4906 NA4907 NA4908 NA4909 NA4910 NA4911 NA4912 Nadellager
|
|
|

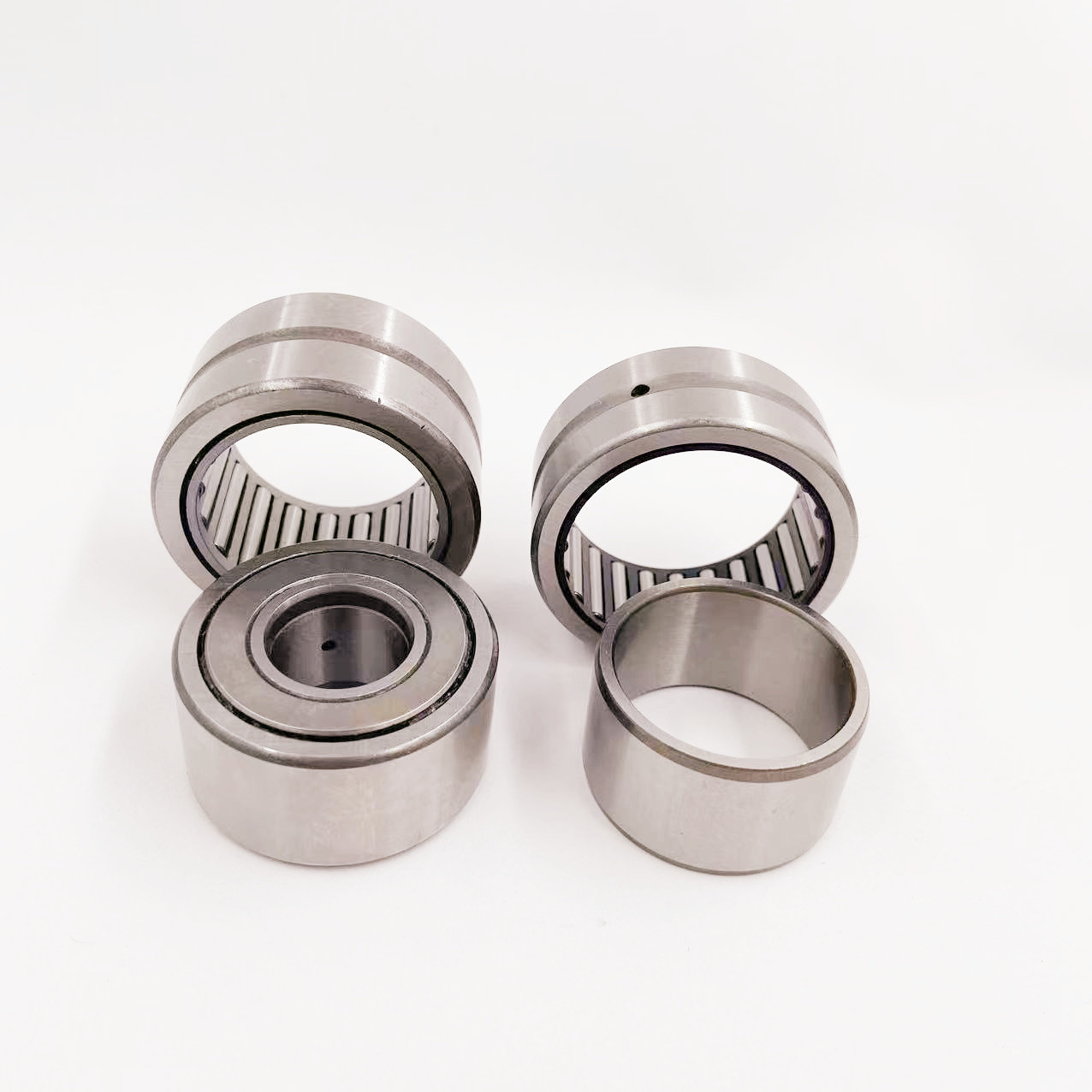

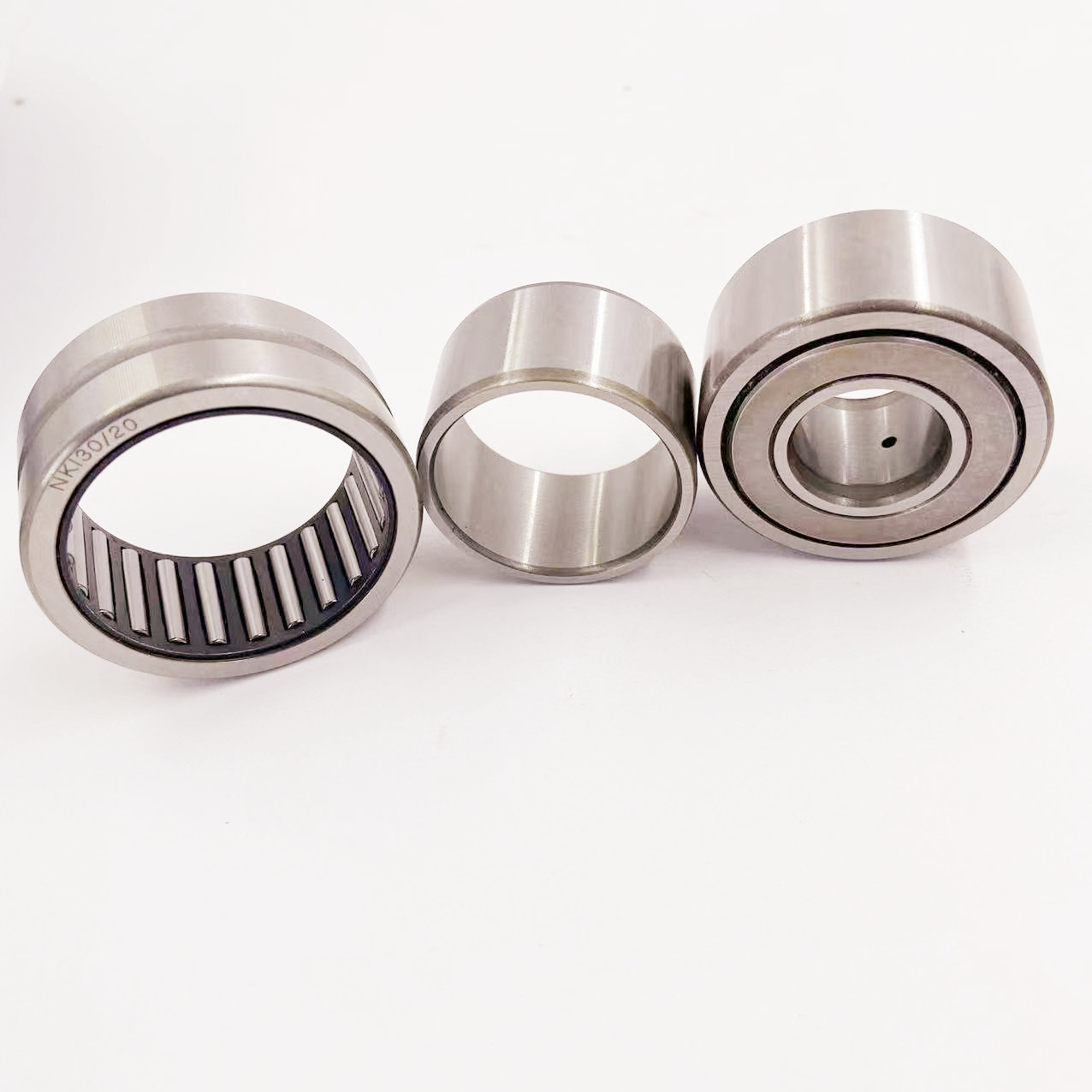

Nadellager mit Flanschen ohne Innenring
|
|
Ringmaterial:
|
GCR15/bearbeiteter Stahl
|
|
Rollenmaterial:
|
GCR15/Chromstahl
|
|
Käfigmaterial:
|
Nylon
|
|
Anzahl der Zeilen:
|
Einreihig
|
|
Präzisionsbewertung:
|
P0 P6 P5 P4
|
|
Anwendungsbranchen:
|
Baustoffgeschäfte, Produktionsanlagen, Maschinenreparaturwerkstätten, Lebensmittel- und Getränkefabrik, Einzelhandel, Bauarbeiten, Energie
& Bergbau usw. |
|
Preisliste:
|
Verhandeln
|
|
Service :
|
OEM- oder Kundenlogo akzeptabel und Musterangebot
|
|
Paket :
|
Industrielle Verpackung oder nach Kundenwunsch
|
|
Mehr Service:
|
Bitte kontaktieren Sie uns. Die Kontaktadresse finden Sie unten.
|
|
Lagermodell
|
Abmessungen (mm)
|
|
|
Tragzahl (KN)
|
|
Gewicht (kg)
|
||
|
|
D
|
F
|
D
|
Dyn.C
|
Stat.Co
|
|
||
|
NA4900
|
10mm
|
22mm
|
13mm
|
8800N
|
10400N
|
0,02 kg
|
||
|
NA4900 2RS
|
10mm
|
22mm
|
13mm
|
7370N
|
8150N
|
0,03 kg
|
||
|
NA4901
|
12mm
|
24mm
|
13mm
|
9900N
|
12200 N
|
0,03 kg
|
||
|
NA4901 2RS
|
12mm
|
24mm
|
13mm
|
8090N
|
9650N
|
0,03 kg
|
||
|
NA4902
|
15mm
|
28mm
|
13mm
|
11200N
|
15300 N
|
0,03 kg
|
||
|
NA4902 2RS
|
15mm
|
28mm
|
13mm
|
9130N
|
12000N
|
0,04 kg
|
||
|
NA4903
|
17mm
|
30mm
|
13mm
|
11400N
|
16300N
|
0,04 kg
|
||
|
NA4903 2RS
|
17mm
|
30mm
|
13mm
|
9520N
|
12900 N
|
0,04 kg
|
||
|
NA4904
|
20mm
|
37mm
|
17mm
|
21600 N
|
28000 N
|
0,08 kg
|
||
|
NA4904 2RS
|
20mm
|
37mm
|
17mm
|
19400N
|
22400 N
|
0,08 kg
|
||
|
NA49/22
|
22.000 mm
|
39mm
|
17mm
|
23300 N
|
32000 N
|
0,08 kg
|
||
|
NA4905
|
25mm
|
42.000 mm
|
17mm
|
24200 N
|
34500 N
|
0,09 kg
|
||
|
NA4905 2RS
|
25mm
|
42.000 mm
|
17mm
|
21600N
|
27500N
|
0,09 kg
|
||
|
NA49/28
|
28.000 mm
|
45mm
|
17mm
|
25100 N
|
36500 N
|
0,10 kg
|
||
|
NA4906
|
30mm
|
47mm
|
17mm
|
25500 N
|
39000 N
|
0,10 kg
|
||
|
NA4906 2RS
|
30mm
|
47mm
|
17mm
|
23300 N
|
32000 N
|
0,11 kg
|
||
|
NA49/32
|
32.000 mm
|
52.000 mm
|
20mm
|
30800 N
|
51000N
|
0,16 kg
|
||
|
NA4907
|
35mm
|
55.000 mm
|
20mm
|
31900 N
|
54000 N
|
0,17 kg
|
||
|
NA4907 2RS
|
35mm
|
55.000 mm
|
20mm
|
27000 N
|
43000 N
|
0,18 kg
|
||
|
NA4908
|
40mm
|
62mm
|
22mm
|
42900 N
|
71000N
|
0,23 kg
|
||
|
NA4908 2RS
|
40mm
|
62mm
|
22mm
|
36900 N
|
58500 N
|
0,25 kg
|
||
|
NA4909
|
45mm
|
68.000 mm
|
22mm
|
45700 N
|
78000 N
|
0,27 kg
|
||
|
NA4909 2RS
|
45mm
|
68.000 mm
|
22mm
|
39100 N
|
64000 N
|
0,29 kg
|
||
|
NA4910
|
50mm
|
72mm
|
22mm
|
47300 N
|
85000 N
|
0,27 kg
|
||
|
NA4910 2RS
|
50mm
|
72mm
|
22mm
|
40200N
|
69500 N
|
0,30 kg
|
||
|
NA4911
|
55mm
|
80.000 mm
|
25mm
|
57200 N
|
106000 N
|
0,40 kg
|
||
|
NA4912
|
60mm
|
85.000 mm
|
25mm
|
60500 N
|
114000 N
|
0,43 kg
|
||
|
NA4913
|
65.000 mm
|
90mm
|
25mm
|
61600N
|
120000 N
|
0,46 kg
|
||
|
NA4914
|
70.000 mm
|
100mm
|
30mm
|
84200 N
|
163000 N
|
0,73 kg
|
||
|
NA4915
|
75.000 mm
|
105mm
|
30mm
|
84200 N
|
170000 N
|
0,78 kg
|
||
|
NA4916
|
80.000 mm
|
110.000 mm
|
30mm
|
88000 N
|
183000 N
|
0,88 kg
|
||
|
NA4917
|
85.000 mm
|
120mm
|
35mm
|
108000 N
|
250000 N
|
1,25 kg
|
||
|
NA4918
|
90.000 mm
|
125.000 mm
|
35mm
|
112000 N
|
265000 N
|
1,30 kg
|
||
|
NA4920
|
100.000 mm
|
140.000 mm
|
40mm
|
125000 N
|
280000 N
|
1,90 kg
|
||
|
NA4922
|
110.000 mm
|
150.000 mm
|
40mm
|
130000 N
|
300000 N
|
2,10 kg
|
||
|
NA4924
|
120.000 mm
|
165.000 mm
|
45mm
|
176000 N
|
405000 N
|
2,85 kg
|
||
|
NA4926
|
130mm
|
180.000 mm
|
50mm
|
198000N
|
480000 N
|
3,90 kg
|
||
|
